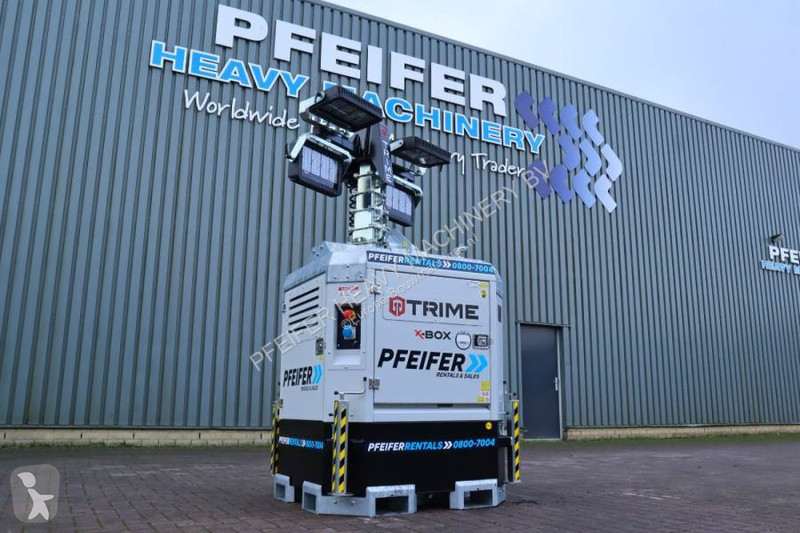

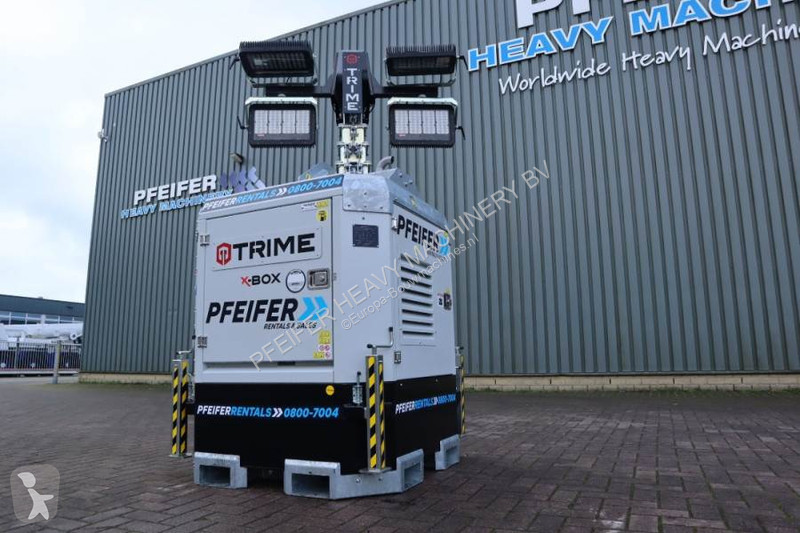

برج إضاءة مستعمل nc X-BOX 4x320W Valid inspection, *Guarantee! H

Field of application: Construction
VAT/margin: VAT qualifying
Transport dimensions (LxWxH): 1.2x1.2x2.51
Please contact PFEIFER GROUP (عرض الرقم, عرض الرقم, ) for more information

Verwendungszweck: Bauwesen
Mehrwertsteuer/Differenzbesteuerung: Mehrwertsteuer abzugsfähig
Transportabmessungen (L x B x H): 1.2x1.2x2.51
Wenden Sie sich an PFEIFER GROUP (عرض الرقم, عرض الرقم, ), um weitere Informationen zu erhalten.

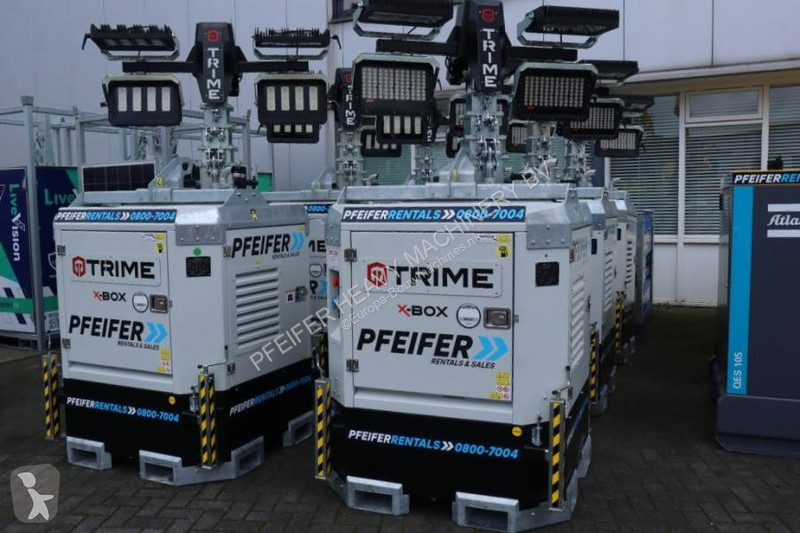

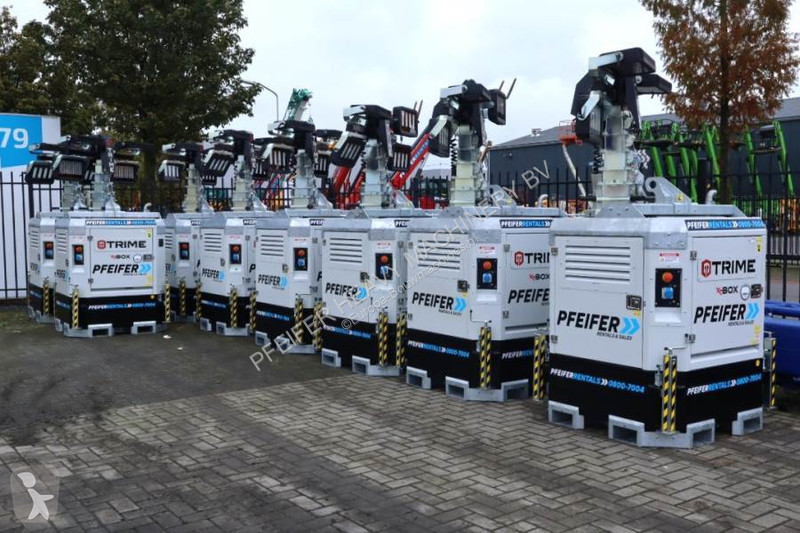

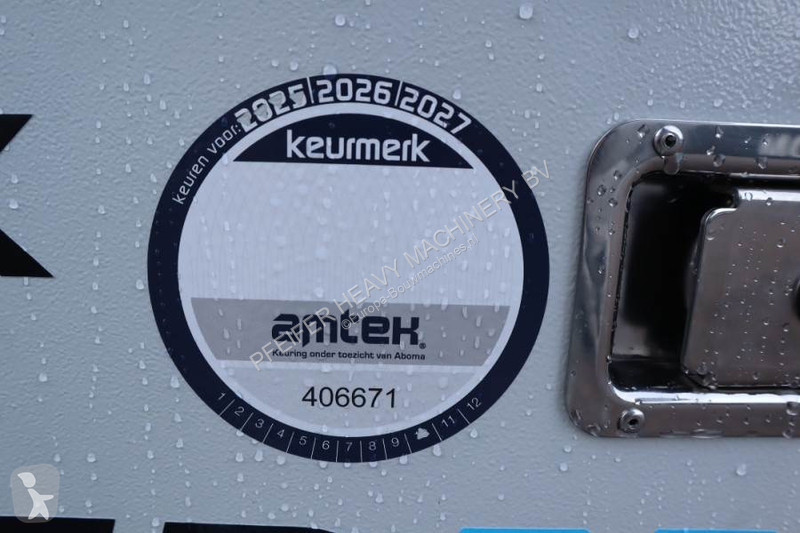

This Trime X-Box 4 x 320 LED has a valid inspection and can be sold with warranty. Inform about our conditions!

Manufacturer: Trime
Typ: X-Box 4 x 320 LED
Building year: 2024
Serial nr: 350240090
Fuel: Diesel

Floodlights:
Type: LED
Power (each) 320W
Floodlights number: 4
Illuminated area (SQM) 9300

Mast
Lifting method: Hydraulic
Max Height: 8,5 m
Max Wind Speed: 110 km/h
Rotation: 340°

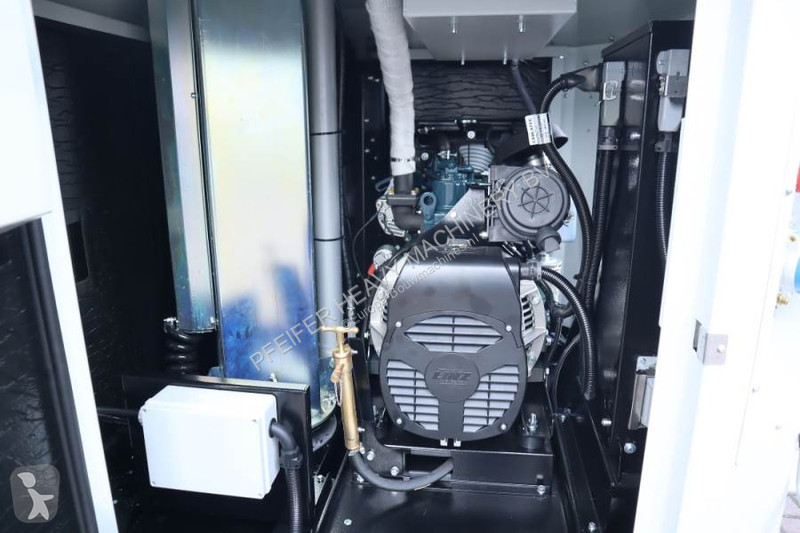

Alternator:
Model: Synchronous
Frequency (Hz) 50
Insulation class: H
Degree of protection: IP 23
Single phase voltage: 33,5kVA - 230V
Auxiliary outlets: 1 kVA

Engine

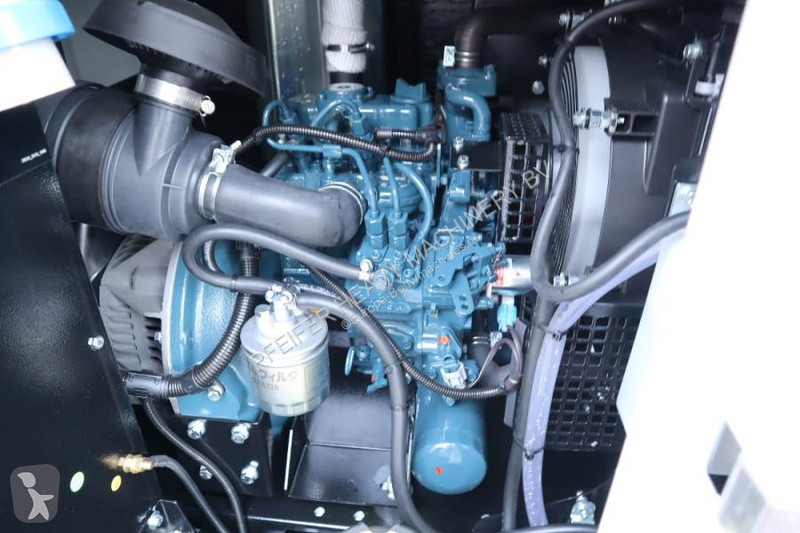

Model: Kubota Z482
Fuel: Diesel
r.p.m: 1500
Tank capacity (l) 220
Consumption (l/h) 0,55
Running time: 400h
Noise leveldB(A) at 7m: 65

* Multi-directionally adjustable and tiltable floodlights

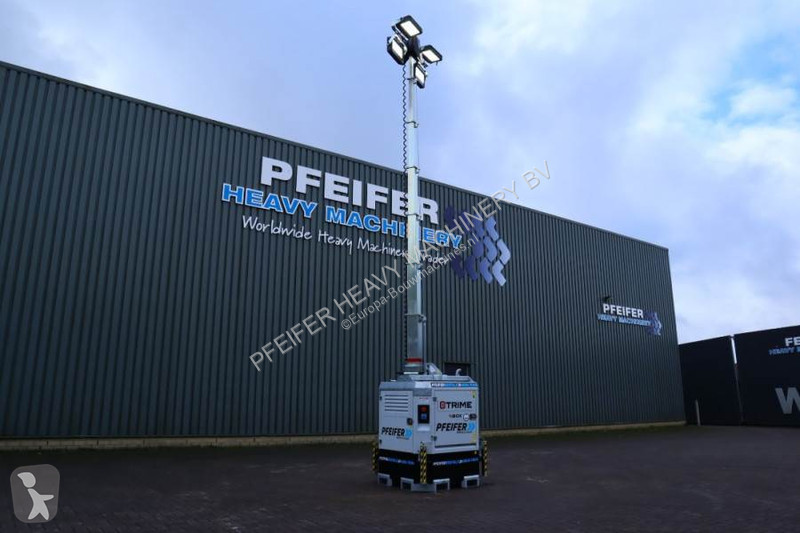

* 7 sections hydraulic vertical tower 8,5 m, 340° rotatable
* Standard light sensor for machine power on and off
* Galvanized metalworks
* 80 µm powder coating
* Very compact dimensions, up to 22 units per truck
* Central lifting eye longitudinal and transversal
forklift pockets for effective handling
* Plug & play, colour coded cables and connectors
* Guided main coiled cable to avoid damage
during tower operation

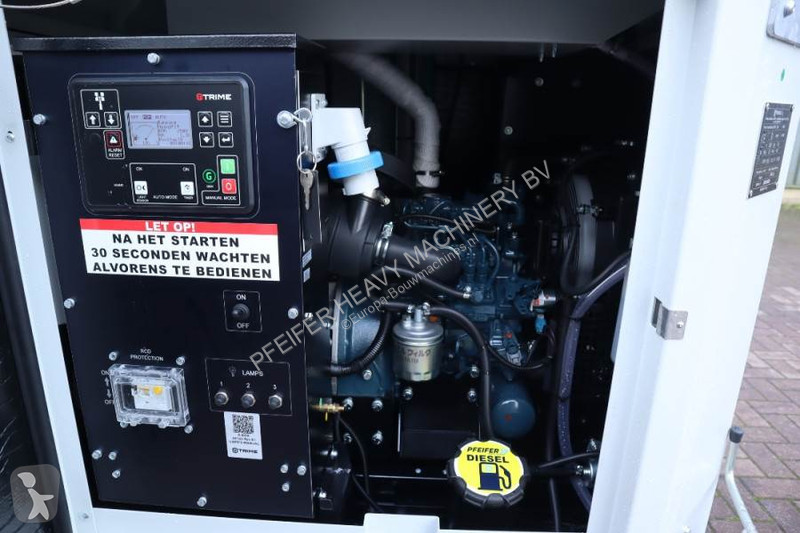

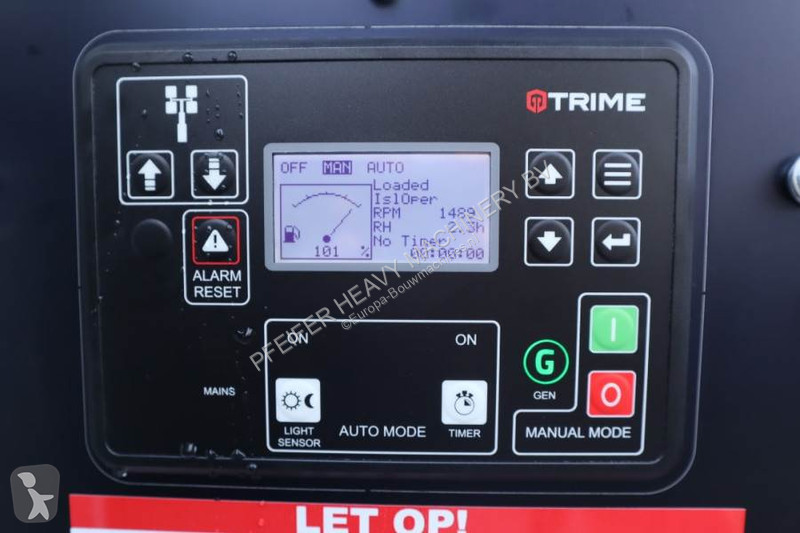

* Digital control panel and fuel level indicator
* Circuit breaker for electrical protection against overload

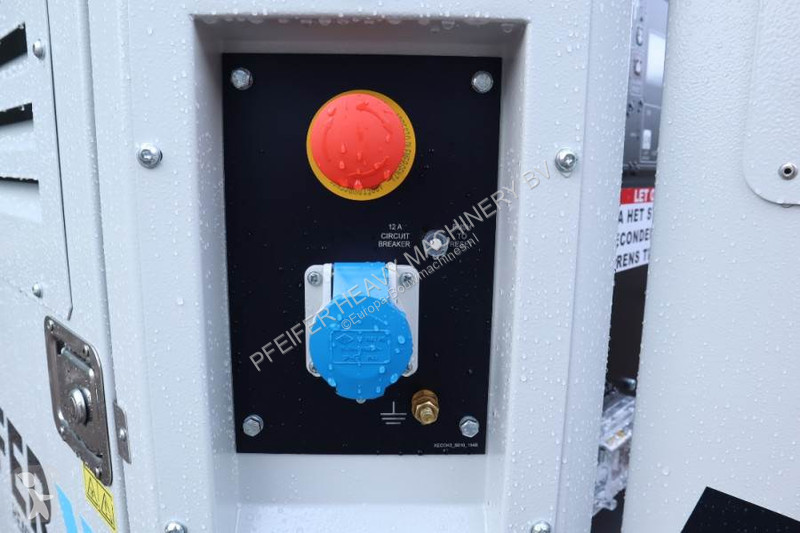

* External emergency stop button
* Fully bunded tank, 110%
* Certified wind stability up tp 110 km/h
* 4 extendable & height adjustable stabilizers
* On board levels for guidance during stabilization

CE (Declaration of Conformity).

More detailed pictures / product movie on our website.

pfeifermachinery.com

Above specifications are subject to change without prior notice and subject to errors.
