جرار زراعي جديد Maxus Wheeled tractor 90hp 4x4 ديزل

MAXUS Specification
Power (HP): 90
Model: 90, Wheeled tractor
Drive type: 4WD
External dimensions (L x W x H) mm: 4100×1840×2660 (cab top)
Wheelbase mm: 2052
Commonly used wheel track (front/rear) mm: 1280/1305
Wheel track (front/rear) or track mm: 1280, 1380/1205-1405
Minimum ground clearance and position mm: 425 (rear drive frame bottom)
Minimum weight kg: 3210 (Cabin)
Standard counterweight (front/rear) kg: 220/180
Number of gears (forward/reverse): 12+12
Maximum theoretical design speed km/h: 38.2
Engine-to-main clutch connection mode: Direct connection
Rollover protection system: Cabin or roll bar
Engine structure: Inline, water-cooled, four-stroke
Engine intake mode: Naturally aspirated
Number of engine cylinders: 4
Engine rated power kW: 66.2 (90 HP)
Displacement: 5130 cm³ (5.13 L)
Engine calibration speed rpm: 2400
Fuel tank capacity: 72 liters
Engine cooling mode: Water cooling
Air filter type: Dry
Exhaust chamber outer dimensions (L x W x T or diameter x L) mm: φ130X450
Exhaust noise-damping chamber weight kg: 7.2
Steering system type: Fully hydraulic
Front-wheel steering
Primary gear shift mode: Mechanical stepped gear
Auxiliary gear shift mode: Mechanical stepped gear
Tire model (front/rear): 24/30
Hydraulic suspension system type: Separate

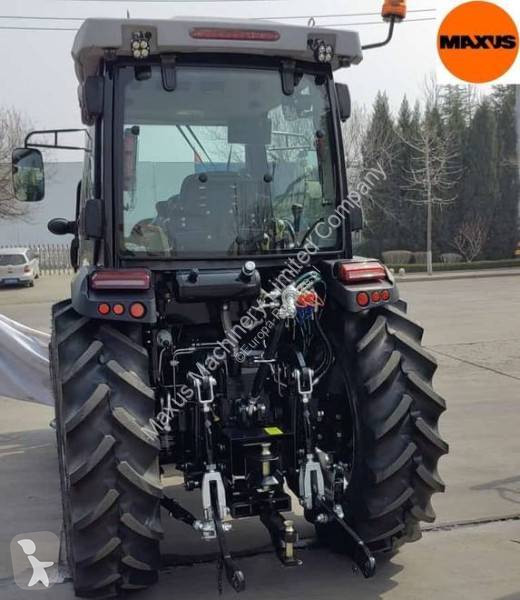

Suspension type: Three-point rear suspension
Suspension category: Category II
Number of hydraulic output groups: 1
Full opening pressure of safety valve for working device Mpa: 17±0.5
Number of power take-off shaft splines: 8
Standard PTO shaft speed rpm: 540/720-1000
If you need another tractor of any power or any machine, that’s no problem—just ask your question, and you’ll receive a prompt response.
Every purchase from us comes with a guarantee of a properly executed contract worth:
2,000,000 PLN (two million) and an additional
1,000,000 PLN (one million) securing each of our subcontractors in the supply chain.
