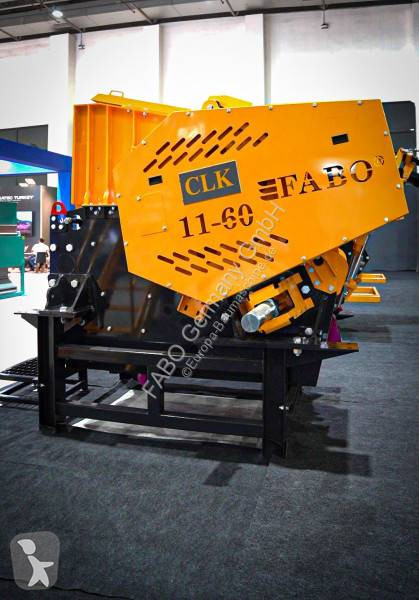

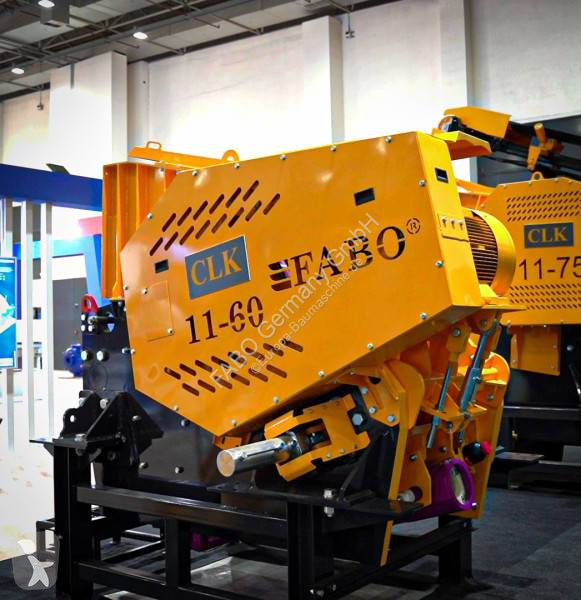

كسارة صخور ذات فكين جديد fabo clk-1160 clk 1160 | 150–300 t/h primär-backenbrecher كهربائي

سعر المبيعات :

السعر عند الطلب

العودة للبحث

تفتيت، إعادة التدوير Fabo CLK 1160 | 150–300...

كسارة صخور ذات فكين جديد Fabo CLK-1160 CLK 1160 | 150–300 t/h Primär-Backenbrecher كهربائي

2026
0 ساعات
52511 Geilenkirchen

معلومات رئيسية
مرجع الموقع:	11277609
النوع	كسارة صخور
هياكل فرعية	كسارة صخور ذات فكين
العلامة التجارية	Fabo
السلسلة (العلامة التجارية : Fabo )	CLK-1160
الطراز	CLK 1160 \| 150–300 t/h Primär-Backenbrecher
الحالة	جديد
السنة	2026
البلد	ألمانيا
صانع	Fabo

معلومات إضافية Fabo CLK 1160 \| 150–300...
موعد التسليم (بالأيام)	90

محرك
قوة المحرك	90 kW

مواصفات Fabo CLK-1160
الوزن	14 طن

حالة الأجهزة
الطاقة	كهربائي

علبة التروس ونظام نقل الحركة
دقة علبة السرعات	-

ملاحظات
Jaw Crushers generally crushes 150 to 300 tons per hour, according to their capacity. Higher capacity jaw crushers can be produced according to customers needed. The jaw crushers are generally used to crush the hardest rocks such as basalt, granite, and gabbro. With its strong and durable jaw structure, it has been one of the most preferred crushers of the mining industry for many years. With jaw adjustment you can get the desired product and desired capacities very well. It can be easily adjusted by its hydraulic pistons. GENERAL SPECIFICATIONS AND FUTURES: -Belt-pulley drive system -Jaw Plates manufactured from custom made cast high manganese steel with a high level of wear resistance -Eccentric shaft manufactured from Cr, Ni, Mo alloyed forged steel -Adjustable jaw opening with hydraulic setting -Utilizing toggle plates for safety purposes in case of overloading -The surfaces which exposed to abrasion are coated with lining plates TECHNICAL SPECIFICATIONS: • Model: FABO CLK 1160 • Type: Primary Jaw Crusher • Inlet Dimensions: 1000 X 600 mm • Jaw Opening: 40-140 mm • Max Feeding: 600 mm • Capacity: 150 to 300 Ton Per Hour • Motor: Heavy duty GAMAK, 90 Kw • Bearings: Heavy duty SKF-FAG • Weight: 14750 kg • Dimension: 2730 x 1326 x 1082 mm • Including motor and safety guards. All of our products are made with care and covered for 1 year warranty! Installation and Operator Training FREE FOR FURTHER INFORMATION PLEASE FEEL FREE TO CALL US!!!
مشاهدة الجميع

ملاحظات

Jaw Crushers generally crushes 150 to 300 tons per hour, according to their capacity. Higher capacity jaw crushers can be produced according to customers needed. The jaw crushers are generally used to crush the hardest rocks such as basalt, granite, and gabbro. With its strong and durable jaw structure, it has been one of the most preferred crushers of the mining industry for many years. With jaw adjustment you can get the desired product and desired capacities very well. It can be easily adjusted by its hydraulic pistons.

GENERAL SPECIFICATIONS AND FUTURES:

-Belt-pulley drive system
-Jaw Plates manufactured from custom made cast high manganese steel with a high level of wear resistance
-Eccentric shaft manufactured from Cr, Ni, Mo alloyed forged steel

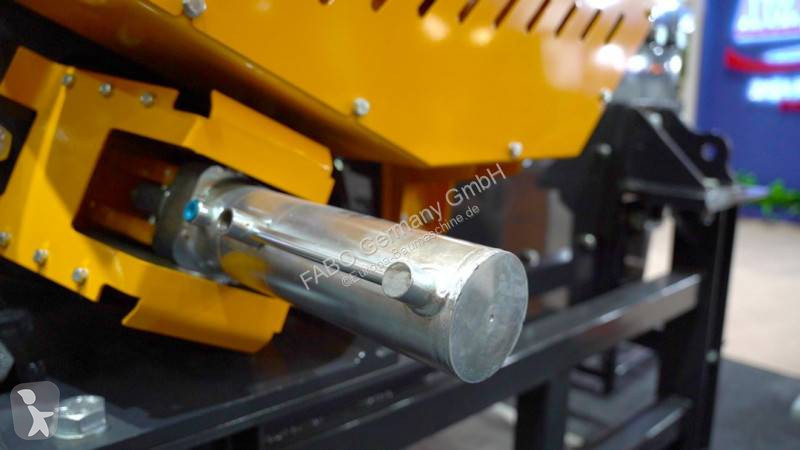

-Adjustable jaw opening with hydraulic setting
-Utilizing toggle plates for safety purposes in case of overloading
-The surfaces which exposed to abrasion are coated with lining plates

TECHNICAL SPECIFICATIONS:

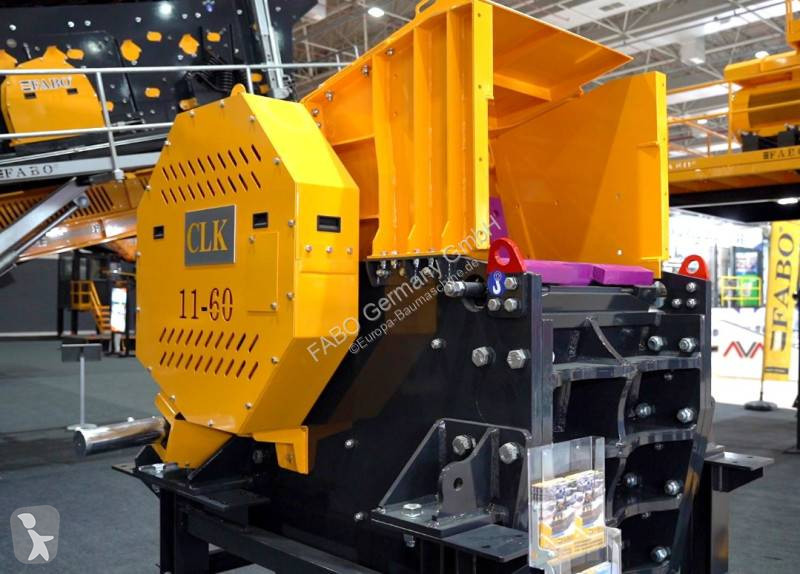

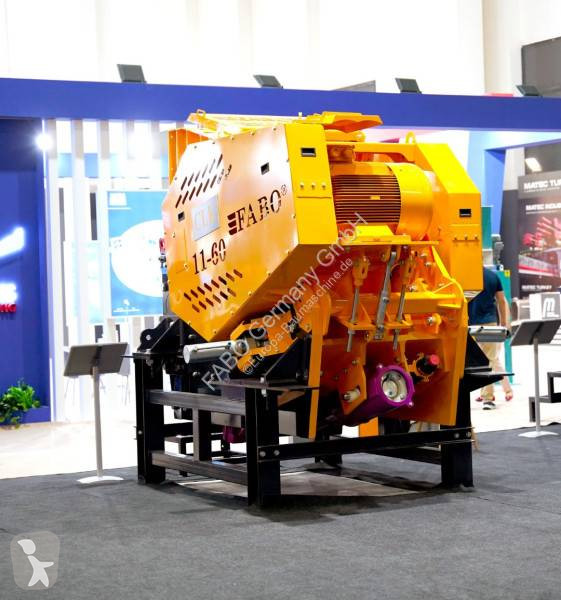

• Model: FABO CLK 1160
• Type: Primary Jaw Crusher
• Inlet Dimensions: 1000 X 600 mm
• Jaw Opening: 40-140 mm
• Max Feeding: 600 mm
• Capacity: 150 to 300 Ton Per Hour

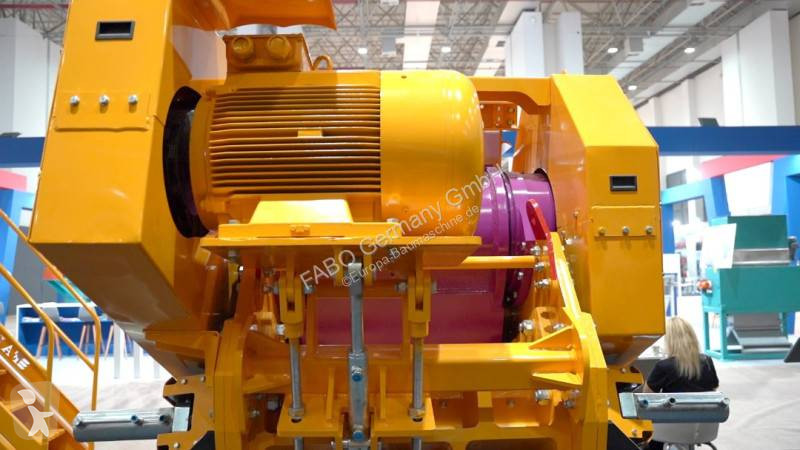

• Motor: Heavy duty GAMAK, 90 Kw
• Bearings: Heavy duty SKF-FAG
• Weight: 14750 kg
• Dimension: 2730 x 1326 x 1082 mm
• Including motor and safety guards.

*All of our products are made with care and covered for 1 year warranty!
*Installation and Operator Training FREE

FOR FURTHER INFORMATION PLEASE FEEL FREE TO CALL US!!!
