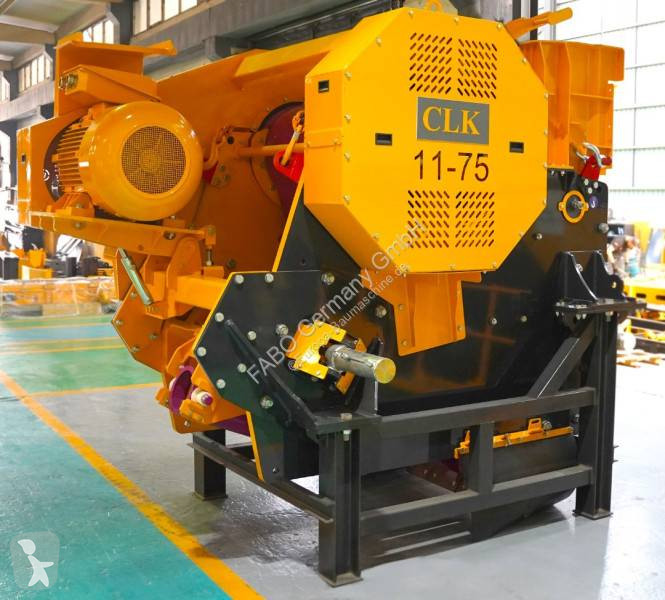

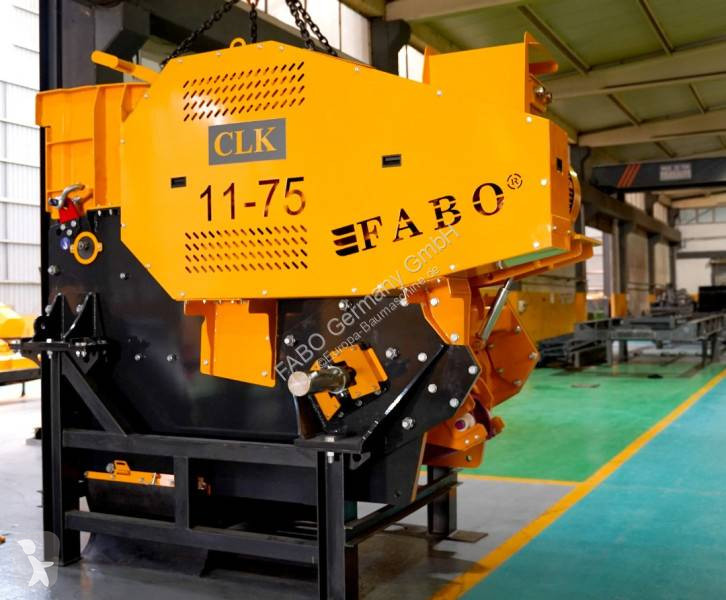

كسارة صخور ذات فكين جديد fabo clk-1175 clk 1175 | 200–300 t/h primär-backenbrecher كهربائي

سعر المبيعات :

السعر عند الطلب

العودة للبحث

تفتيت، إعادة التدوير Fabo CLK 1175 | 200–300...

كسارة صخور ذات فكين جديد Fabo CLK-1175 CLK 1175 | 200–300 t/h Primär-Backenbrecher كهربائي

2026
0 ساعات
52511 Geilenkirchen

معلومات رئيسية
مرجع الموقع:	11277614
النوع	كسارة صخور
هياكل فرعية	كسارة صخور ذات فكين
العلامة التجارية	Fabo
السلسلة (العلامة التجارية : Fabo )	CLK-1175
الطراز	CLK 1175 \| 200–300 t/h Primär-Backenbrecher
الحالة	جديد
السنة	2026
البلد	ألمانيا
صانع	Fabo

معلومات إضافية Fabo CLK 1175 \| 200–300...
موعد التسليم (بالأيام)	90

محرك
قوة المحرك	110 kW

مواصفات Fabo CLK-1175
الوزن	21 طن

حالة الأجهزة
الطاقة	كهربائي

علبة التروس ونظام نقل الحركة
دقة علبة السرعات	-

ملاحظات
Jaw Crushers generally crushes 200 to 300 tons per hour, according to their capacity. Higher capacity jaw crushers can be produced according to customers needed. The jaw crushers are generally used to crush the hardest rocks such as basalt, granite, and gabbro. With its strong and durable jaw structure, it has been one of the most preferred crushers of the mining industry for many years. With jaw adjustment you can get the desired product and desired capacities very well. It can be easily adjusted by its hydraulic pistons. GENERAL SPECIFICATIONS AND FUTURES: -Belt-pulley drive system -Jaw Plates manufactured from custom made cast high manganese steel with a high level of wear resistance -Eccentric shaft manufactured from Cr, Ni, Mo alloyed forged steel -Adjustable jaw opening with hydraulic setting -Utilizing toggle plates for safety purposes in case of overloading -The surfaces which exposed to abrasion are coated with lining plates TECHNICAL SPECIFICATIONS: • Model: FABO CLK 1175 • Type: Primary Jaw Crusher • Inlet Dimensions: 1070 x 760 mm • Jaw Opening: 45-160 mm • Max Feeding: 760 mm • Capacity: 200 to 300 Ton Per Hour • Motor: Heavy duty GAMAK, 110 Kw • Bearings: Heavy duty SKF-FAG • Weight: 21360 kg • Dimension: 2730 x 1698 x 2492 mm • Including motor and safety guards. All of our products are made with care and covered for 1 year warranty! Installation and Operator Training FREE FOR FURTHER INFORMATION PLEASE FEEL FREE TO CALL US!!!
مشاهدة الجميع

ملاحظات

Jaw Crushers generally crushes 200 to 300 tons per hour, according to their capacity. Higher capacity jaw crushers can be produced according to customers needed. The jaw crushers are generally used to crush the hardest rocks such as basalt, granite, and gabbro. With its strong and durable jaw structure, it has been one of the most preferred crushers of the mining industry for many years. With jaw adjustment you can get the desired product and desired capacities very well. It can be easily adjusted by its hydraulic pistons.

GENERAL SPECIFICATIONS AND FUTURES:

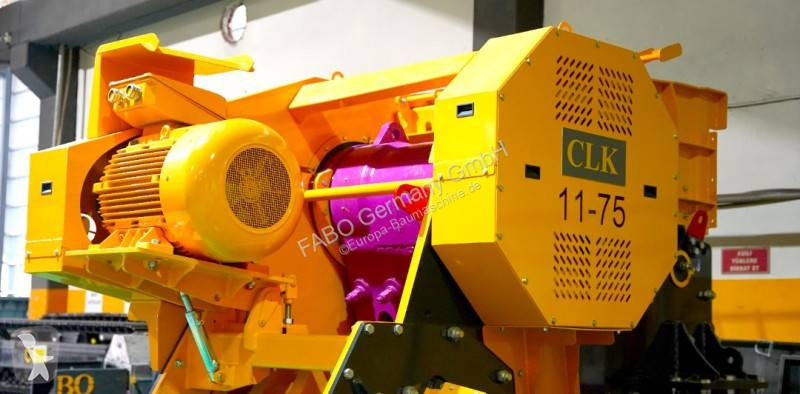

-Belt-pulley drive system

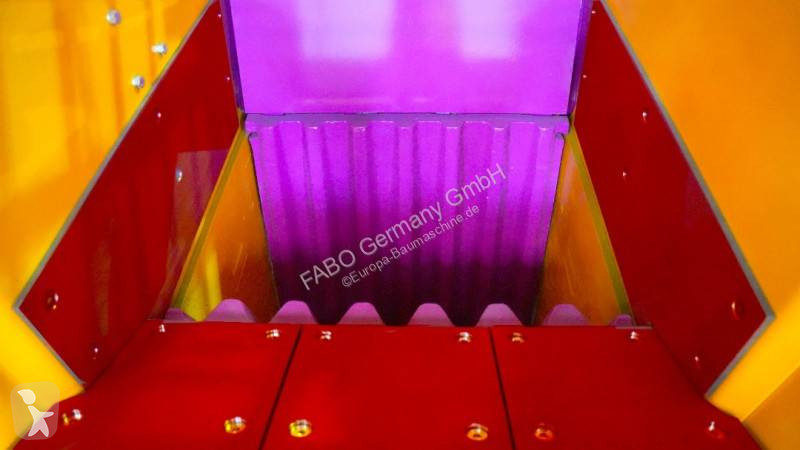

-Jaw Plates manufactured from custom made cast high manganese steel with a high level of wear resistance
-Eccentric shaft manufactured from Cr, Ni, Mo alloyed forged steel

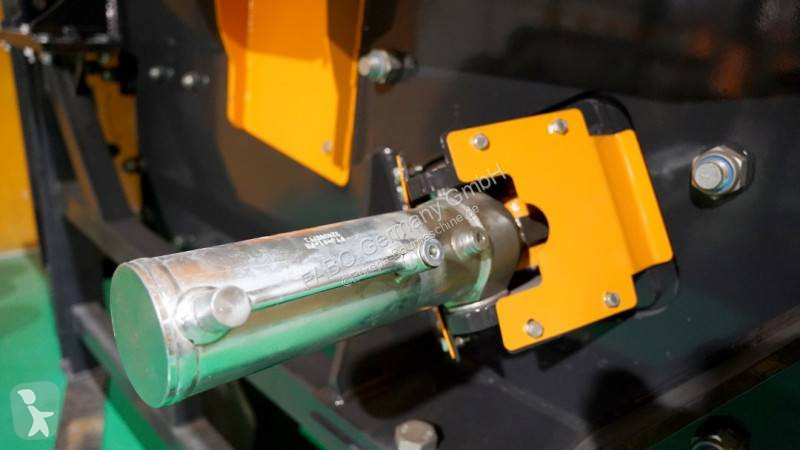

-Adjustable jaw opening with hydraulic setting

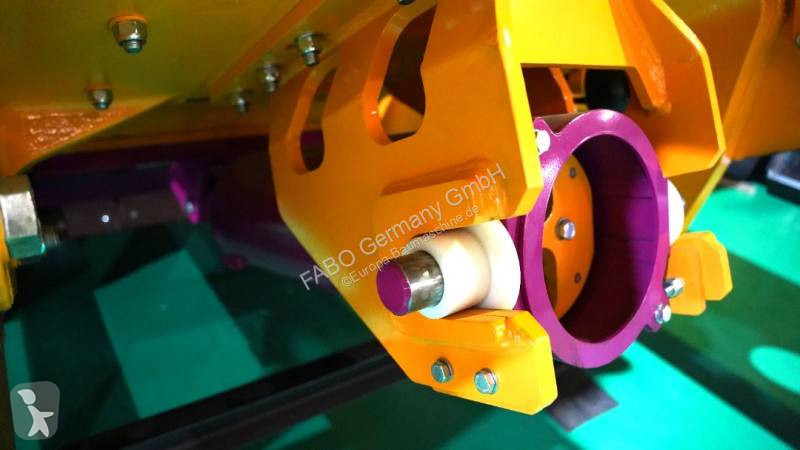

-Utilizing toggle plates for safety purposes in case of overloading
-The surfaces which exposed to abrasion are coated with lining plates

TECHNICAL SPECIFICATIONS:

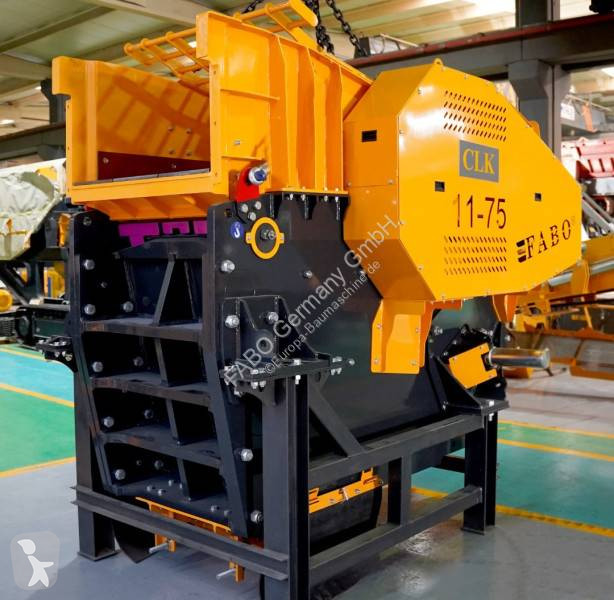

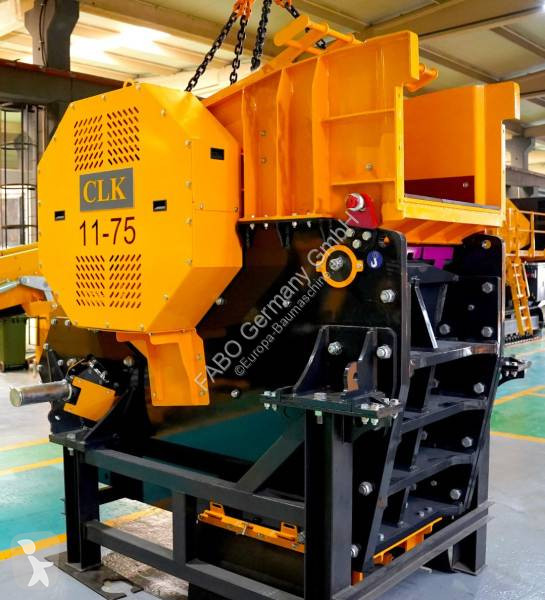

• Model: FABO CLK 1175
• Type: Primary Jaw Crusher
• Inlet Dimensions: 1070 x 760 mm
• Jaw Opening: 45-160 mm
• Max Feeding: 760 mm
• Capacity: 200 to 300 Ton Per Hour

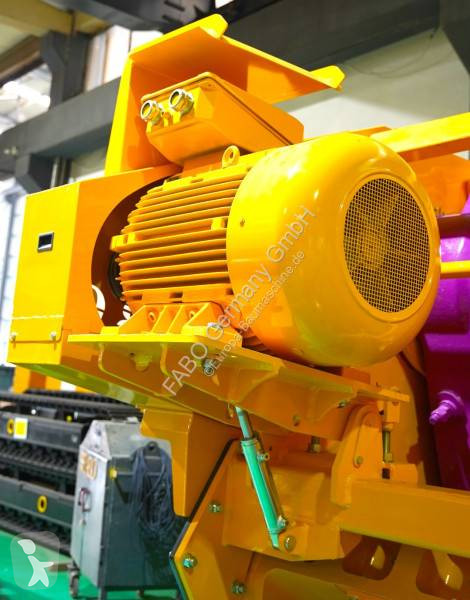

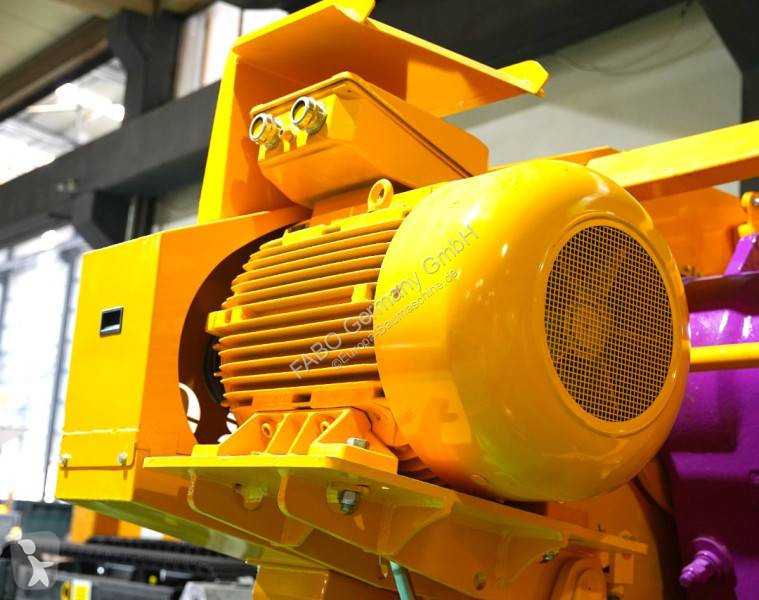

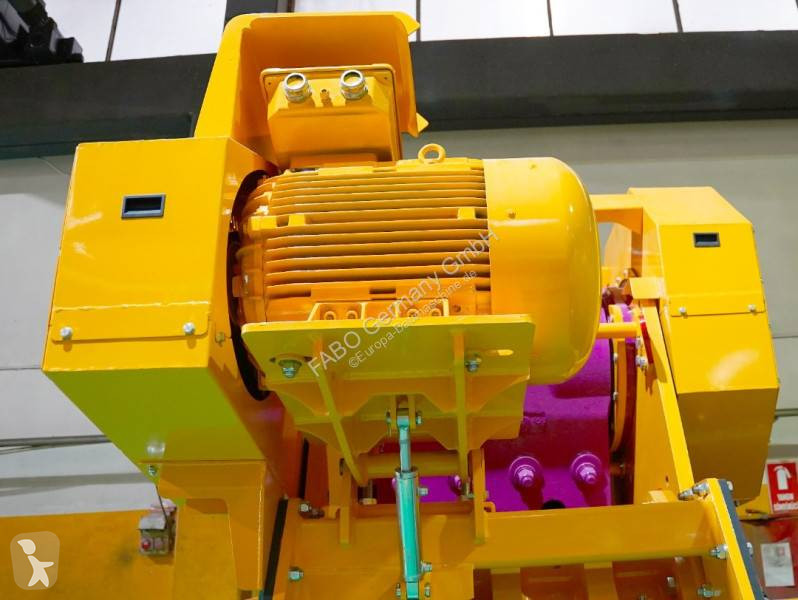

• Motor: Heavy duty GAMAK, 110 Kw
• Bearings: Heavy duty SKF-FAG
• Weight: 21360 kg
• Dimension: 2730 x 1698 x 2492 mm
• Including motor and safety guards.

*All of our products are made with care and covered for 1 year warranty!
*Installation and Operator Training FREE

FOR FURTHER INFORMATION PLEASE FEEL FREE TO CALL US!!!
