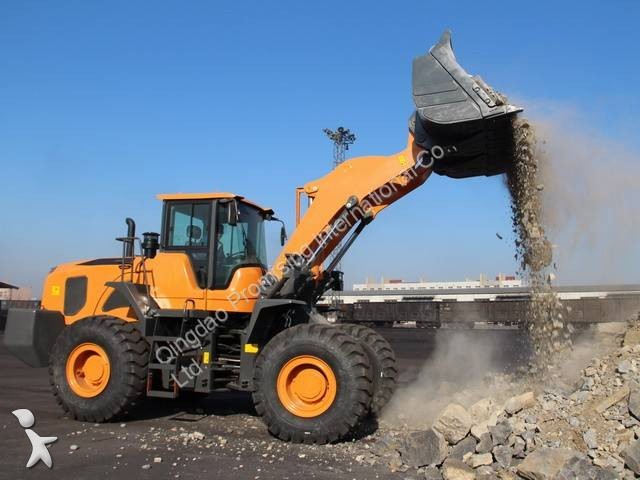

محملة بعجلات جديد Dragon Machinery Dragon656

5.0T medium wheel loader, 5.0ton wheel loader, 5.0 ton medium-sized wheel loader, 5.0T compact wheel loader, 5000kg loaders, mining wheel loaders, new wheel loader for mining industry, 4WD wheel loader, 5.0T shovel loader, 5.0 ton rock bucket loader, 5.0T capacity mining loader, 5.0Ton front end loader, 5.0 Ton medium front loader for mining, 5.0 T mining front loader, 5000kg front loader, 5.0T CE wheel loader, 5.0T front wheel loader, 5.0 Ton front loader, 5.0 Ton medium loader with bucket, 5.0 Ton mining loader with rock bucket, 5.0 Ton compact loader, 5000kg medium loader with earthmoving bucket, 5000kg mining loader, 5000kg compact loader, 5000kg front end loader, 5000kg medium sized front loader, 5000kg medium front loader, CE approved 5.0T front wheel loader, CE certified 5.0 ton front end wheel loader, 5.0 ton wheel loader with CE mark, CE front loader with 5.0T capacity, CE front end loader with 5.0 ton capacity, CE medium-sized loader with 5000kg capacity

Features:
1. Full-View Cab with Stylish Appearance. Good sealing system and shock absorption system together with the luxurious suspension seat provides the driver with a comfortable operating environment. ROPS, FOPS and AC are Optional.
2. Energy-Saving and Environment Friendly Diesel Engine. WEICHAI WD10G220E23 diesel engine conforms to China National Stage II Emission Standard for Non-road Mobile Machineries, and it is equipped with efficient and large-capacity torque converter and highly reliable transmission that are optimized and matched with hydraulic system to make it have excellent energy-saving effect.
3. Planetary Power Shift Transmission. This loader is equipped with power shift planetary gear transmission with compact structure and long service life gears.
4. Optimized Hydraulic System. This load is equipped with Joystick Control to the operating hydraulic system and load sensing hydraulic steering system to make its operating more simple and flexible and its performance more reliable.
5. Durable & Stable Structural Components. All structural components have been analyzed by using the finite element method to make them have large loading capacity, higher strength and better stability.
6. Articulated Frame & Optimized Working Devices. The articulated frame, optimized working devices and big breakout force of this loader enable it to work in various poor working conditions.

Dragon Loader Model Dragon656
Main Technical Specifications:
Rated Load: 5000kg
Max. Tractive Force: >= 170kN
Max. Breakout Force: >= 190kN
Max. Gradeability: 30°
Max. Dumping Height: 3230mm
Max. Dumping Reach: 1260mm
Raising Time: < 6.4s
Overall Dimension: 8000*3020*3420mm
Min. Turning Radius (bucket/tyre): 6750/6030mm
Transmission System: Shantui Single-Stage, Four-Element, Double-Turbine Hydraulic Torque Converter
Gearbox Mode: Hangzhou Advance Planetary Power Shift Gearbox
Gear Shift: 2 Forward, 1 Reverse
Max. Speed: 38km/h
Drive Axel Main Reducing Mode: Bevel Gear Grade 1 Reduction
Drive Axel Hub Reduction Mode: Planetary Reduction Grade 1
Wheel Tread: 3200mm
Wheel Base: 2920mm
Min. Ground Clearance: 457mm
