محملة بعجلات جديد Qingdao Promising 0.6T Capacity Mini Wheel Loader ZL06F ديزل

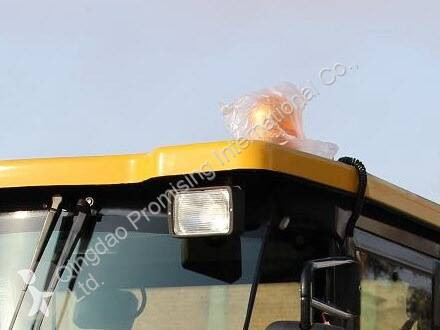

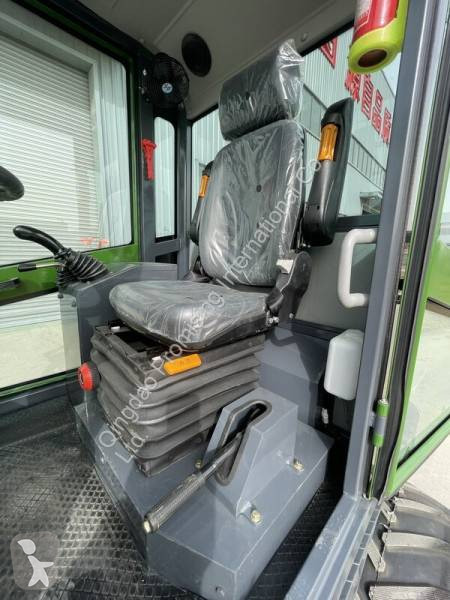

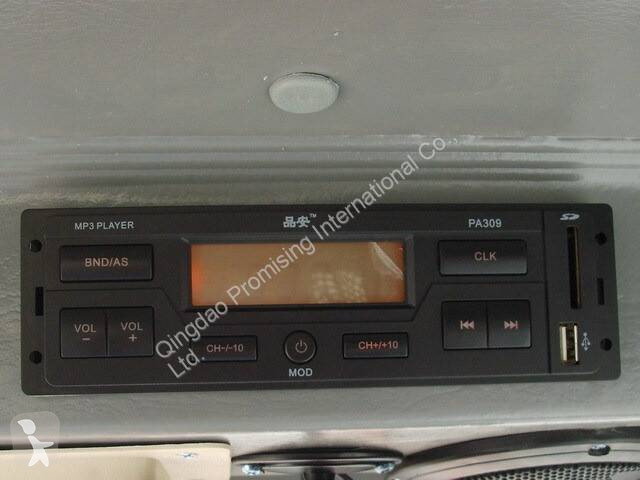

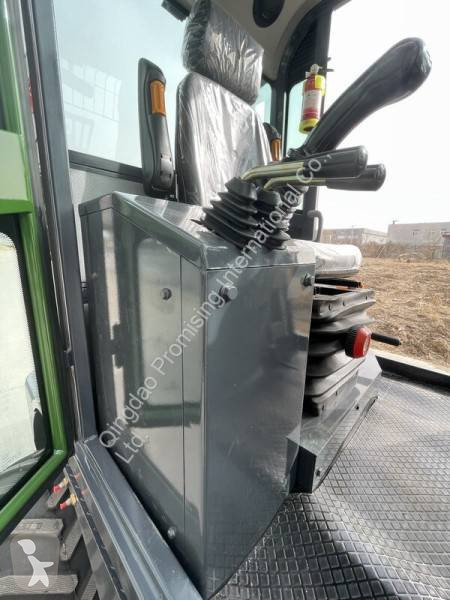

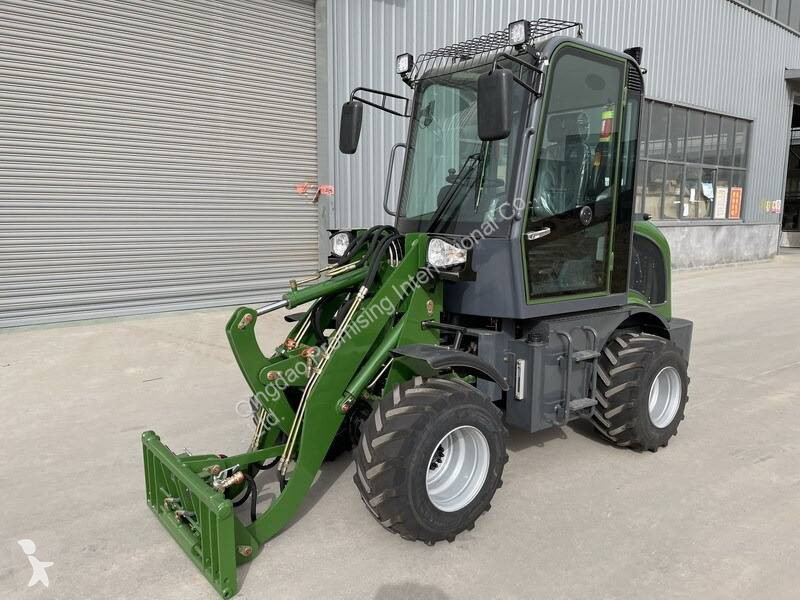

0.6T Mini Wheel Loader with enclosed cabin, adjustable suspension seat, digital radio & MP3 player, top beacon, mechanical joystick, and optional hydraulic quick hitch, tilt cabin, LED lights, and reversing camera etc. as well as multiple optional attachments

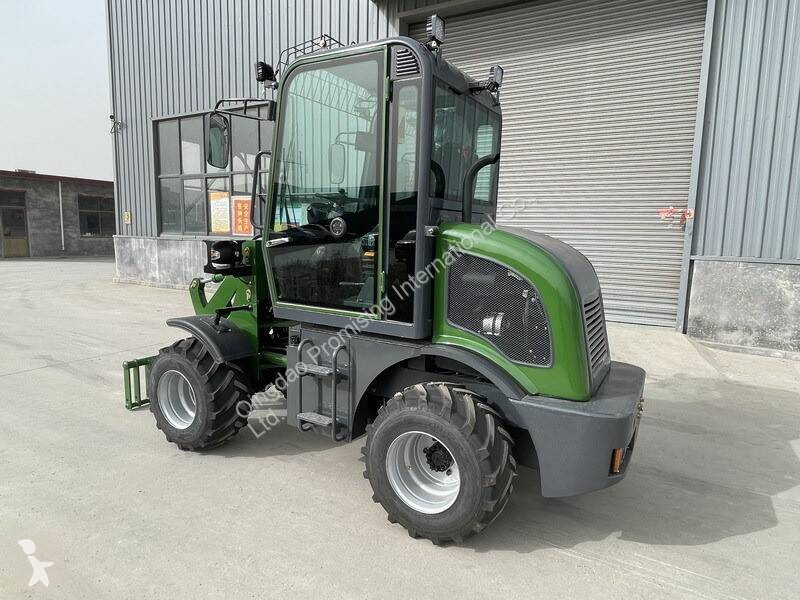

0.6 ton Mini Wheel Loader ZL06F
Technical Specifications
1. Rated Load: 600kg
2. Operating Weight: 2600kg
3. Rated Bucket Capacity: 0.3CBM
4. Bucket Width: 1100mm
5. Max. Breakout Force: 28 KN
6. Max. Dumping Height: 2300mm
7. Max. Dumping Reach: 750mm
8. Raising Time: less than 4.0s
9. Hydraulic Cycle Time: 9s
10. Min. Ground Clearance: 240mm
11. Overall Dimensions (L x W x H): 4300x1410x2450mm
12. Min. Turning Radius: 4600mm
13. Engine Model: CHANGCHAI ZN390Q
14. Engine Type: Horizontal, Water-cooled Evaporative, Three-cylinder Diesel Engine
15. Rated Engine Power: 25kW
16. Rated Engine Speed: 2400rpm
17. Transmission Mode: Automatic Transmission (with torque converter)
18. Gear Shift: 3 Forward, 1 Reverse
19. Max. Speed: 25km/h
20. Mode of Axle: 130 Drive Axle
21. Wheel Tread: 970mm
22. Wheel Base: 1800mm
23. Drive Mode: 4-wheel Drive
24. Full Hydraulic Steering System: BZZ-80
25. System Working Pressure: 10 Mpa
26. Service Brake: Foot Pedal Hydraulic Expansion-shoe Brake on 4 Wheels
27. Parking Brake: Hand Lever Flexible Shaft Controlled Disc Brake
28. Tyre Type Specification: 8.25-16-14PR
29. Front Tyre Pressure: 0.40Mpa
30. Rear Tyre Pressure: 0.35Mpa

Optional EURO5 Engine: 18.4kw CHANGCHAI ZN390BT

Optional Wider Tyres: 31x15.5-15PR

Optional Parts and Functions:
Canopy, Open Cabin, FOPS/ROPS, Tilting Cabin, Hydraulic Joystick, Air Conditioner, Colour Coded Electronic Gear Shift Button on Joystick, Gear Shift Lever with Electronic Control, Reversing Camera, Quick Hitch, Extra Hydraulic Lines, LED Lights, and Float Function, etc.

Note:
1. The technical specifications are for standard models only.
2. Other optional accessories and requirements are available upon request.
3. All photos are for reference only. Machines shown may include optional parts.
4. All specifications and design characteristics are subject to change without prior notice.
5. For all available loader attachments, please refer to our Loader Attachments Catalogue.
6. Equipped with hydraulic quick coupler, your wheel loader can be easily and conveniently switched from one attachment to another to save your time and labor. Equipped with skid steer (Bobcat) quick coupler or Euro Standard quick coupler, you can use all your existing attachments with our wheel loader.
