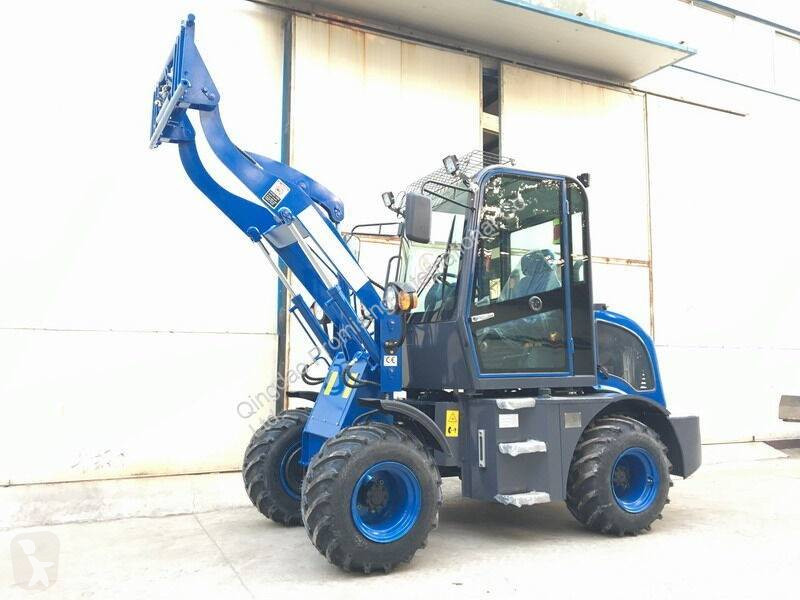

محملة بعجلات جديد Qingdao Promising ZL10F Small Wheel Loader with CE ديزل

1.0T automatic transmission loader, 1 ton automatic transmission wheel loader, 1.0Ton front end loader, 1.0T CE wheel loader, 1.0T front wheel loader, 1.0 Ton front loader, 1.0 Ton small loader, 1.0 Ton mini loader, 1.0 Ton compact loader, 1.0T articulated small loader, 1.0 Ton small front loader, 1.0 T mini front loader, 1000kg front loader, 1000kg small loader, 1000kg mini loader, 1000kg compact loader, 1000kg front end loader, 1000kg small front loader, 1000kg mini front loader, CE approved 1.0T front wheel loader, CE certified 1.0 ton front end wheel loader, 1.0 ton wheel loader with CE mark, CE front loader with 1.0T capacity, CE front end loader with 1.0 ton capacity, CE small loader with 1000kg capacity, 1.0T wheel loader, 1.0ton wheel loader, 1.0 ton wheel loader, 1.0T compact wheel loader, 1000kg loaders, mini wheel loaders, new wheel loader, 4WD wheel loader 1 ton Capacity automatic transmission wheel loader with enclosed cabin, adjustable suspension seat, digital radio & MP3 player, top beacon; and optional hydraulic joystick control, hydraulic quick coupler, reversing camera, and air conditioner Mini Wheel Loader ZL10F Technical Specifications
1. Rated Load: 1000kg
2. Operating Weight: 3500kg
3. Rated Bucket Capacity: 0.7CBM
4. Bucket Width: 1700mm
5. Max. Breakout Force: 26KN
6. Max. Dumping Height: 2600mm
7. Max. Dumping Reach: 850mm
8. Raising Time: < 4.0s
9. Min. Ground Clearance: 230mm
10. Overall Dimensions (L x W x H): 4750x1730x2500mm
11. Min. Turning Radius: 4000mm
12. Engine Model: CHANGCHAI ZN490B
13. Engine Type: Four-cylinder, Inline, Water-cooled Evaporative, Four-stroke Diesel Engine
14. Rated Engine Power: 39kW
15. Rated Engine Speed: 2400rpm
16. Min. Fuel Consumption Rate: 230g/kW.h
17. Transmission Mode: YJ240 Hydraulic Torque Converter
18. Gear Shift: 1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed
19. Max. Speed: 25km/h
20. Mode of Axle: ISUZU Drive Axle
21. Wheel Tread: 1400mm
22. Wheel Base: 1580mm
23. Drive Mode: 4-wheel Drive
24. Hydraulic System Working Pressure: 16Mpa
25. Hydraulic System Working Pump Type: Gear Pump
26. Service Brake: Foot Pedal Drum Brake on 4 Wheels
27. Parking Brake: Hand Lever Flexible Shaft Controlled Disc Brake
28. Tyre Type Specification: 8.25-16-14PR
29. Front Tyre Pressure: 0.40Mpa
30. Rear Tyre Pressure: 0.35Mpa Optional EURO5 Engine: 36.8kw YUNNEI DEF20CFF4 Engine Optional Wider Tyres: 31x15.5-15PR Optional Parts and Functions: Canopy, Open Cabin, FOPS/ROPS, Tilting Cabin, Hydraulic Joystick, Air Conditioner, Colour Coded Electronic Gear Shift Button on Joystick, Gear Shift Lever with Electronic Control, Reversing Camera, Quick Hitch, Extra Hydraulic Lines, LED Lights, and Floating Function, etc. Note:
1. The technical specifications are for standard models only.
2. Other optional accessories and requirements are available upon request.
3. All photos are for reference only. Machines shown may include optional parts.
4. All specifications and design characteristics are subject to change without prior notice.
5. For all available loader attachments, please refer to our Loader Attachments Catalogue.
6. Equipped with hydraulic quick coupler, your wheel loader can be easily and conveniently switched from one attachment to another to save your time and labor. Equipped with skid steer (Bobcat) quick coupler or Euro Standard quick coupler, you can use all your existing attachments with our wheel loader.
