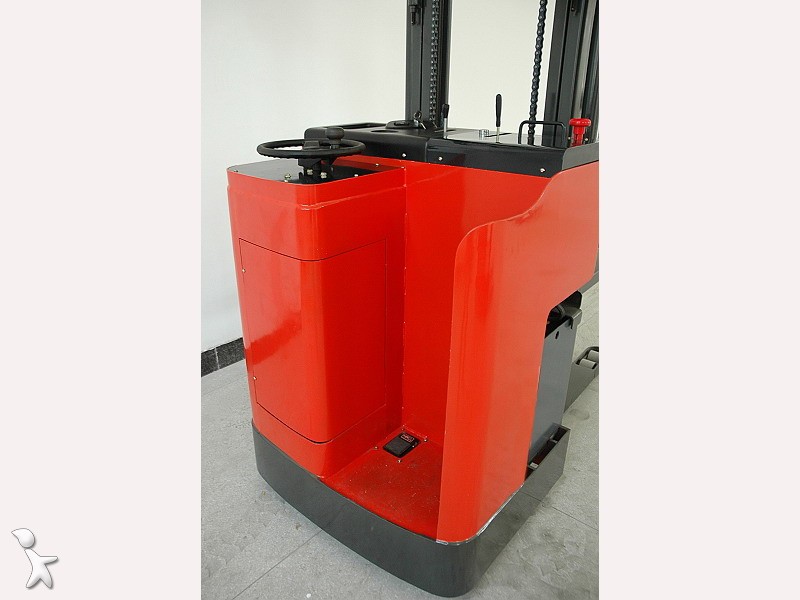

مرفاع شوكي مع سائق واقف جديد Dragon Machinery TBE15-30 كهربائي

1.5T Capacity Electric Pallet Stacker with Steering Wheel TBE Series
Electric pallet stacker with steering wheel, steering wheel electric stacker, electric rider operated pallet stacker, stand-on electric pallet stacker, electric rider pallet stacker, electric straddle pallet stacker, electric operated pallet stacker, electric stacker with steering wheel, electric stacker truck with steering wheel, powered pallet stacker, powered stacker truck, steering wheel battery pallet stacker, battery stacker truck with steering wheel

Rated Load: 1.5T
Standard Lifting Height: 3.0m
Overall Length: 2132mm
Overall Width: 940mm
Fork Size: 1150 x 190mm

Applications:
Steering Wheel Electric Pallet Stacker or Electric Stacker Truck with Steering Wheel is applicable to the stacking works in the narrow aisles and limited spaces and is the ideal tools for high-rack warehouses, supermarkets, workshops and containers for pallet stacking and block stacking or to handle material horizontally and load/unload goods on single deck pallet.

Features:
1. EPS steering system to make the operation easier;
2. Electronic type braking;
3. Intelligent charger that can automatically analyze the residual energy and optimize the charging process without needing any manual operation and extend the battery service life effectively;
4. Speed limit for high position to avoid the possibility of the overturning of goods when electric pallet stacker runs in high speed while goods are in a high position;
5. High Strength overhead guard to protect the operator.


Technical Specifications:
Power Type: Electric
Operation Type: Side Stand-on with Steering Wheel
Rate Load Capacity: 1500kg
Load Center: 500mm
Wheel (Tyre) Type: Polyurethane Solid Tyre
Rear (Driving) Wheel: Ø230*70mm
Front (Load) Wheel: Ø80*70mm
Auxiliary (Balance) Wheel: Ø150*50mm
Number of Wheels Front/Rear (X=Driving): 4 / 1X+1
Max. Lifting Height: 3000mm
Height of Mast Lowered: 2037mm
Height of Mast Extended (with Backrest): 3532mm
Height of Overhead Guard: 2252mm
Min. Ground Clearance – Wheelbase: 30mm
Min. Ground Clearance - Fork Tine: 90mm
Overall Length: 2132mm
Length to Fork Face: 982mm
Wheelbase: 1472mm
Overall Width: 940mm
Front/Rear Wheel Tread: 478/577mm
Fork Dimensions (L*W*T): 1150*190*56mm
Fork Spread: 668mm
Aisle Width with 1000*1200 Pallet across Forks: 2575mm
Aisle Width with 800*1200 Pallet along Forks: 2513mm
Min. Turning Radius: 1705mm
Max. Travel Speed (Full-load/No-load): 4.3/4.8km/h
Battery: 24V/360Ah
Charger: 24V/40A
Battery Weight: 315kg
Service Weight (with Battery): 1353kg
Drive Motor: 1.1kW (AC)
Lift Motor: 3.5kW (DC)
Type of Steering: Full Hydraulic Steering
Service Brake: Regenerative
Parking Brake: Electromagnetic

Note:
1. Technical specifications are for standard models only.
2. Other optional accessories, functions and requirements are available upon request.
3. All specifications and design characteristics are subject to change without prior notice.
