مصنع اسمنت جديد Fabo TurboMix-110 Turbomix-110 Mobile Betonmischanlage كهربائي

2026
52511 Geilenkirchen

معلومات رئيسية
مرجع الموقع:	11277641
النوع	مصنع اسمنت
العلامة التجارية	Fabo
السلسلة (العلامة التجارية : Fabo )	TurboMix-110
الطراز	Turbomix-110 Mobile Betonmischanlage
الحالة	جديد
السنة	2026
البلد	ألمانيا
صانع	Fabo

معلومات إضافية Fabo Turbomix-110 Mobile...
موعد التسليم (بالأيام)	90

محرك
قوة المحرك	105 kW

مواصفات Fabo TurboMix-110
قدرة الإنتاج	110 طن/ساعة

حالة الأجهزة
الطاقة	كهربائي

علبة التروس ونظام نقل الحركة
دقة علبة السرعات	-

ملاحظات
All of our products are made with care and covered for 1 year warranty! Installation and Operator Training FREE FABO TURBOMIX FULL AUTOMATIC MOBILE CONCRETE BATCHING PLANTS are ideal solutions for the projects that require short term and a compacted settlement on a dedicated job site. Since all the equipment of a concrete plant is assembled on a single mobile chassis, the plant can be moved easily by only one truck. Productivity of TURBOMIX mobile concrete plants vary from 30 m3/h to 150 m3/h. FABO TURBOMIX series of mobile concrete batching plants have automatic control, static/dynamic Load Cell Weighing of aggregate materials and additives. Concrete plants have qualitative and strong concrete mixer, which provides high capacity homogeneous mixture. TECHNICAL SPECIFICATIONS: Model: TURBOMIX 110 Production capacity: 100 m3 Dimensions (length x width x height): 16300 x 3200 x 4500 mm Mixer type: Twinshaft – 2.2 m3 Aggregate bunker: 4x17 m3 Transfer conveyor: 6250 kg Cement weighing: 1300 kg Additives weighing: 40 kg Water weighing: 750 lt Total weight: 27550 kg Total motor power: 105 kW Cement silo is optional. Turbomix 110 consists of: • Aggregate Storage Hopper • Aggregate Weighing Hopper • Aggregate Transfer Conveyor • Twinshaft Mixer • Mixer Chassis, Walking Platforms, Ladder • Water Weighing Hopper • Cement Weighing Hopper • Admixture Weighing Hopper • Air Compressor • Cement Screw Conveyor • Bolted Cement Silo • Top Filter, Safety Valve and Accessories • Control Cabinnet • PC and Automation System • Control and Power Panel FOR FURTHER INFORMATION PLEASE FEEL FREE TO CALL US!!!
مشاهدة الجميع

ملاحظات

*All of our products are made with care and covered for 1 year warranty!
*Installation and Operator Training FREE

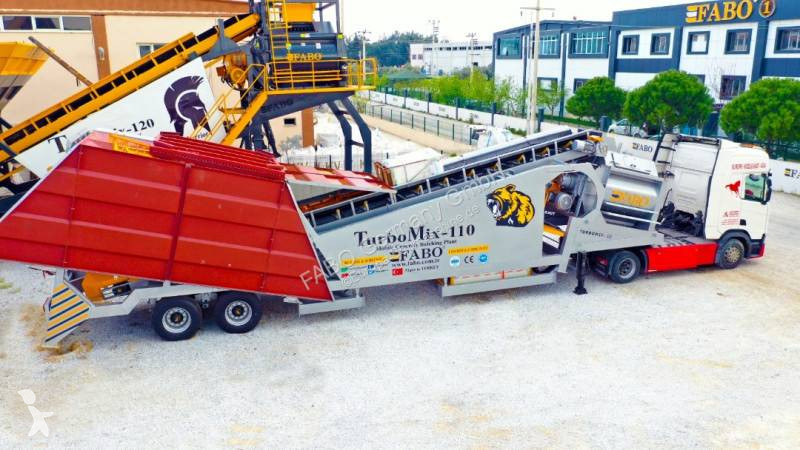

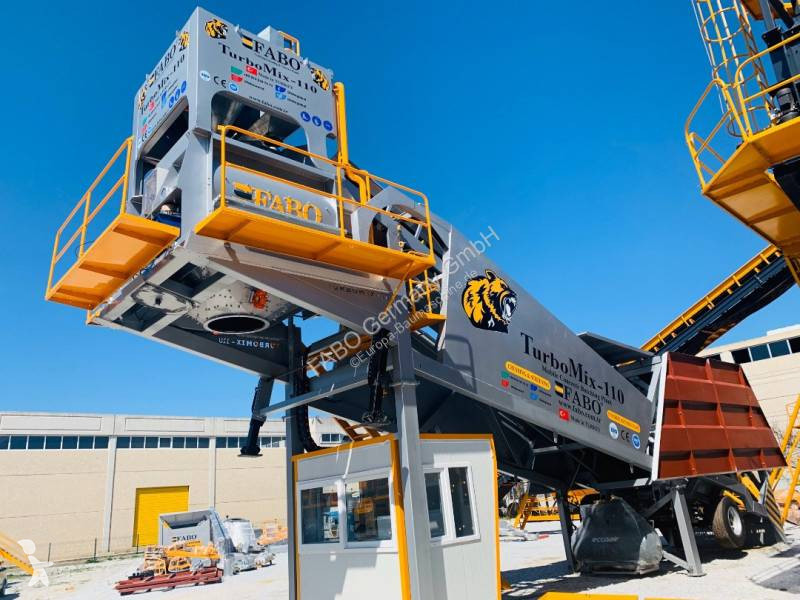

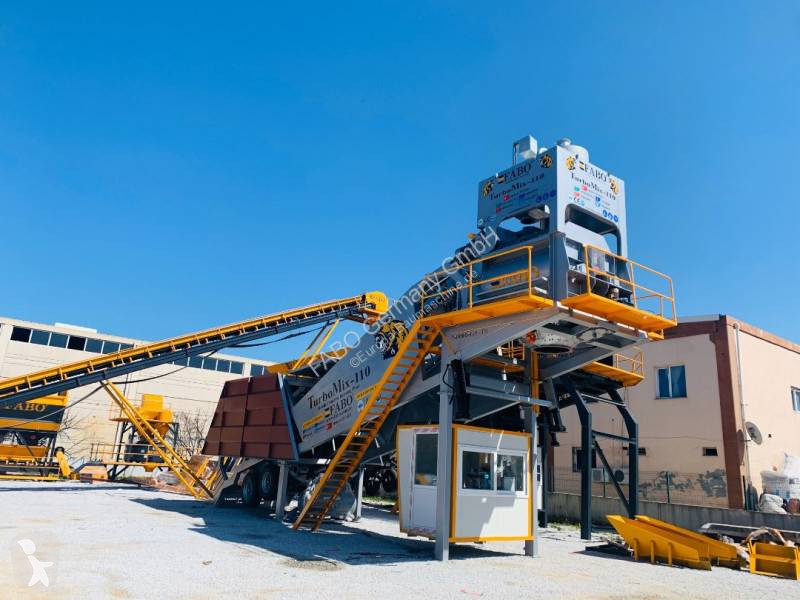

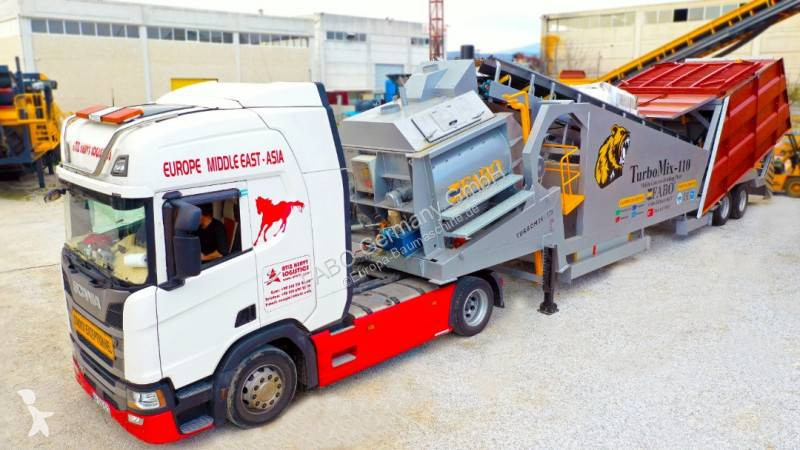

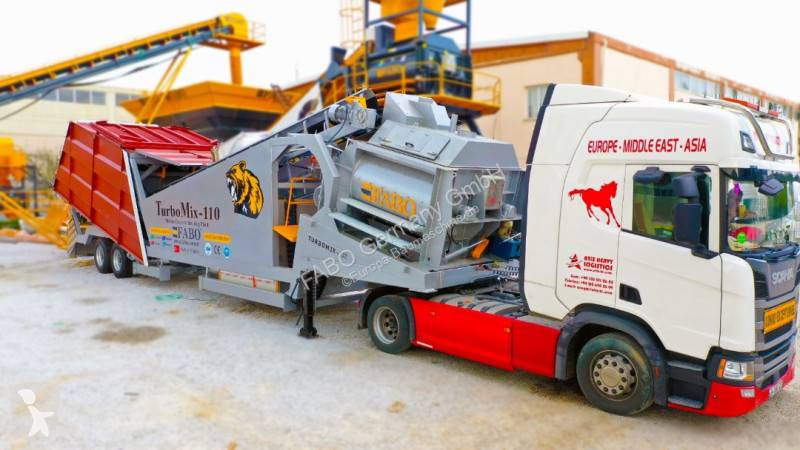

FABO TURBOMIX FULL AUTOMATIC MOBILE CONCRETE BATCHING PLANTS are ideal solutions for the projects that require short term and a compacted settlement on a dedicated job site. Since all the equipment of a concrete plant is assembled on a single mobile chassis, the plant can be moved easily by only one truck. Productivity of TURBOMIX mobile concrete plants vary from 30 m3/h to 150 m3/h.
FABO TURBOMIX series of mobile concrete batching plants have automatic control, static/dynamic Load Cell Weighing of aggregate materials and additives. Concrete plants have qualitative and strong concrete mixer, which provides high capacity homogeneous mixture.

TECHNICAL SPECIFICATIONS:

Model: TURBOMIX 110
Production capacity: 100 m3
Dimensions (length x width x height): 16300 x 3200 x 4500 mm
Mixer type: Twinshaft – 2.2 m3
Aggregate bunker: 4x17 m3
Transfer conveyor: 6250 kg
Cement weighing: 1300 kg
Additives weighing: 40 kg
Water weighing: 750 lt
Total weight: 27550 kg
Total motor power: 105 kW
Cement silo is optional.

Turbomix 110 consists of:

• Aggregate Storage Hopper
• Aggregate Weighing Hopper
• Aggregate Transfer Conveyor
• Twinshaft Mixer
• Mixer Chassis, Walking Platforms, Ladder
• Water Weighing Hopper
• Cement Weighing Hopper
• Admixture Weighing Hopper
• Air Compressor
• Cement Screw Conveyor
• Bolted Cement Silo
• Top Filter, Safety Valve and Accessories
• Control Cabinnet
• PC and Automation System
• Control and Power Panel

FOR FURTHER INFORMATION PLEASE FEEL FREE TO CALL US!!!
