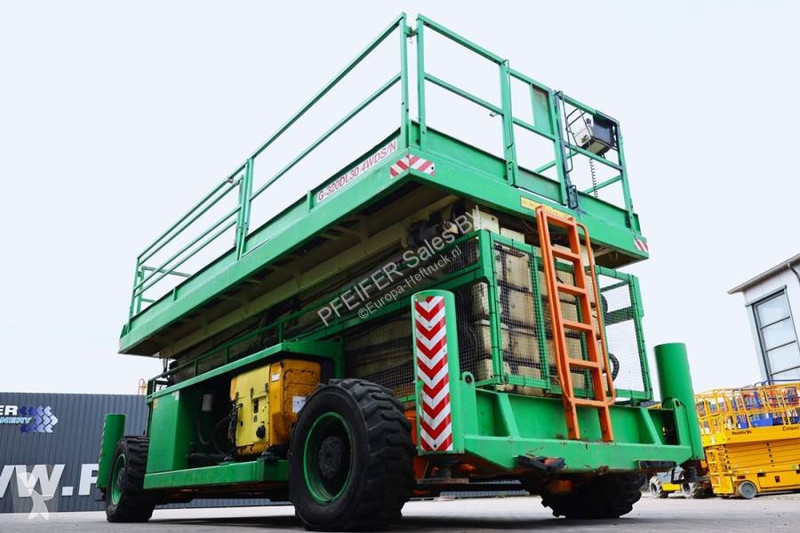

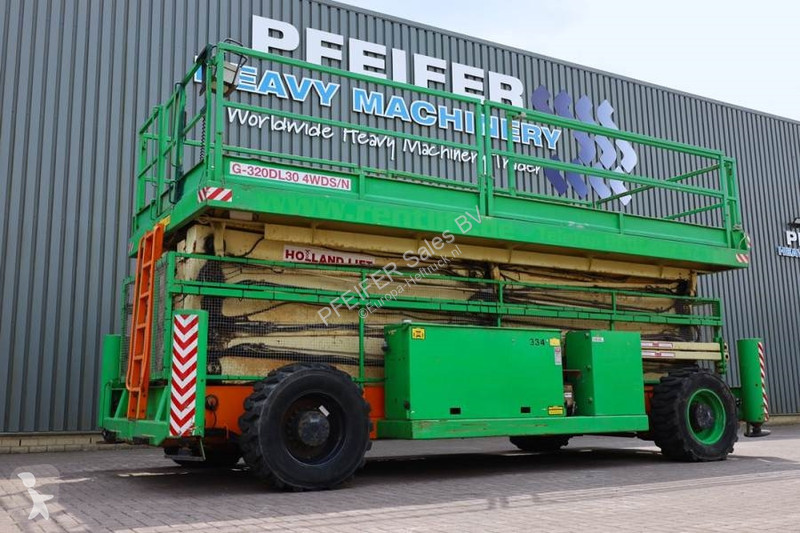

منصة تلسكوبية ذاتية الحركة مستعمل Hollandlift Megastar G-320DL30-4WDS/N Diesel, 4x4x4 Drive, 34m

Front tyres / undercarriage remaining: 70
Rear tyres remaining : 70
Tyre brand: Wide Wall
Transport dimensions (LxWxH): 7.02x2.98x3.63
Please contact PFEIFER GROUP (عرض الرقم, عرض الرقم, ) for more information

Zustand der Bereifung vorne: 70
Zustand der Bereifung hinten: 70
Transportabmessungen (L x B x H): 7.02x2.98x3.63
Wenden Sie sich an PFEIFER GROUP (عرض الرقم, عرض الرقم, ), um weitere Informationen zu erhalten.

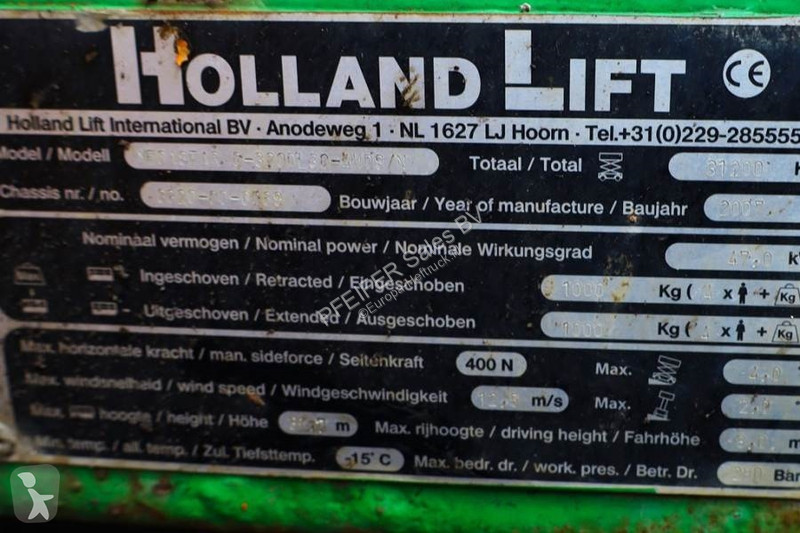

Manufacturer: Holland lift
Typ: G-320DL30-4WDS/N
Building year: 2007
Fuel: Diesel
Serial number: G320-00-6069
Working hours: 819 h

Dimensions & Performance

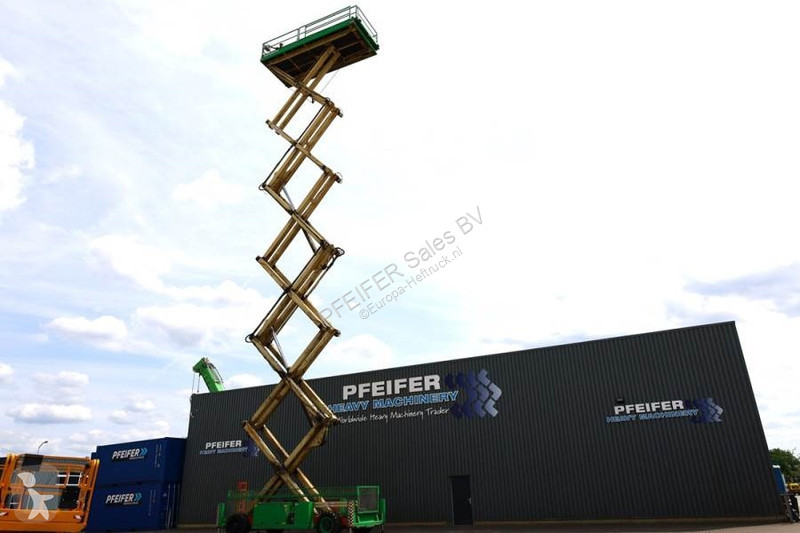

Max. working height: 33.70 m
Max. platform height: 31.70 m
Min. platform height: 2.47 m

Platform dimensions (retracted): 6.66 m × 2.80 m
Platform dimensions (extended): 9.66 m × 2.80 m

Transport height: 3.63 m
Transport height (handrail folded): 2.87 m
Transport dimensions (L×W): 7.02 m × 2.98 m

Wheelbase: 4.63 m
Ground clearance: 360 mm
Turning radius (outside): ± 7.70 m

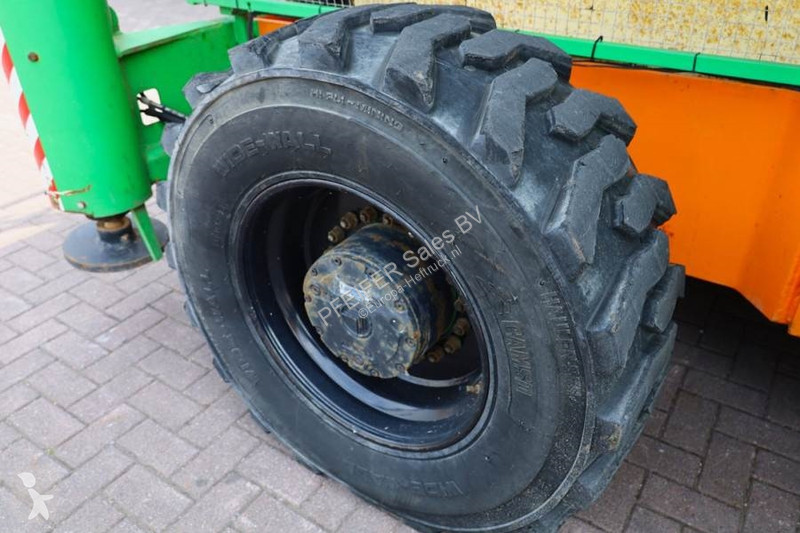

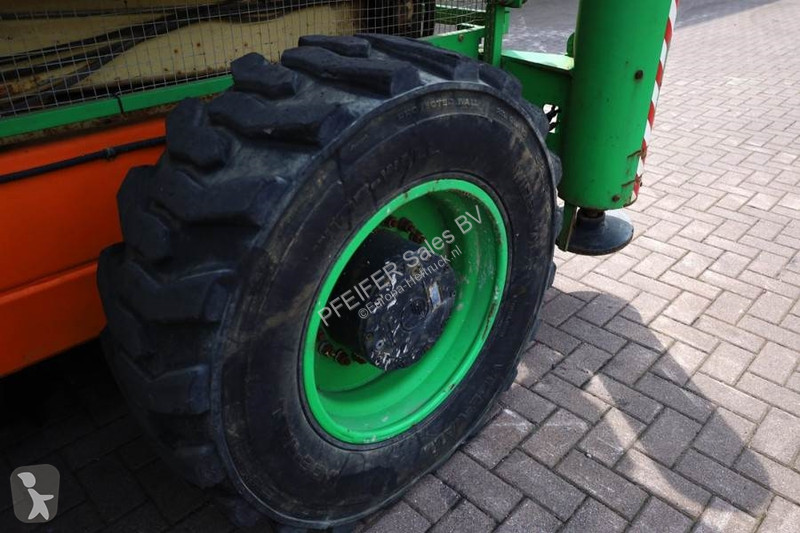

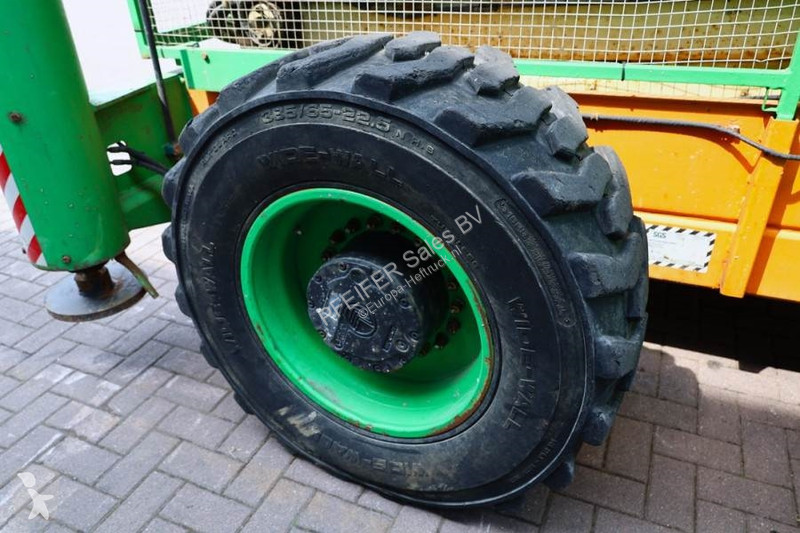

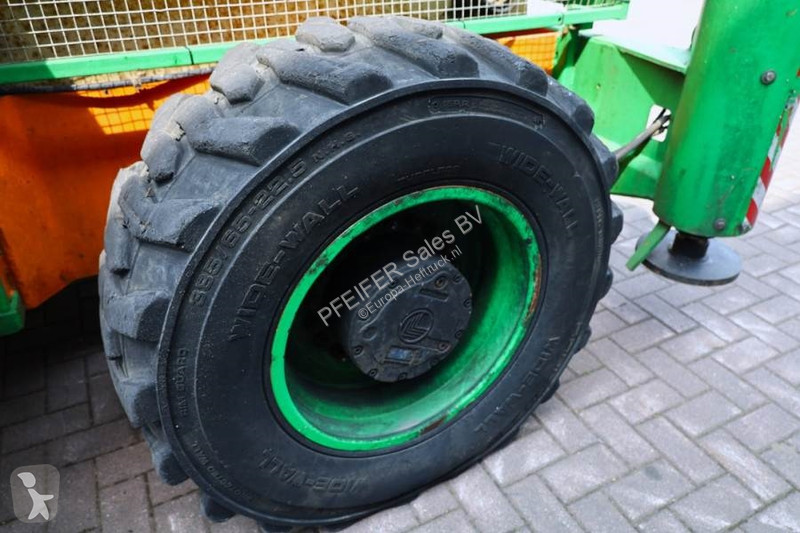

Tyres: Wide Wall / 385/65-22.5: 70%

Capacity & Weight
Platform load (retracted or extended): Max. 1000 kg (4 persons + 680 kg)
Driving speed (high / low): 3.5 km/h / 0.5 km/h
Gradeability: ± 35%
Engine: Hatz 4L41C (Silent Pack)
Gross weight: 31.200 kg

Features
Proportional drive and lift control
Driveable at full height
Four-wheel drive (4WD)
Four-wheel steering (4WDS)
Levelling jacks (stabilisers)

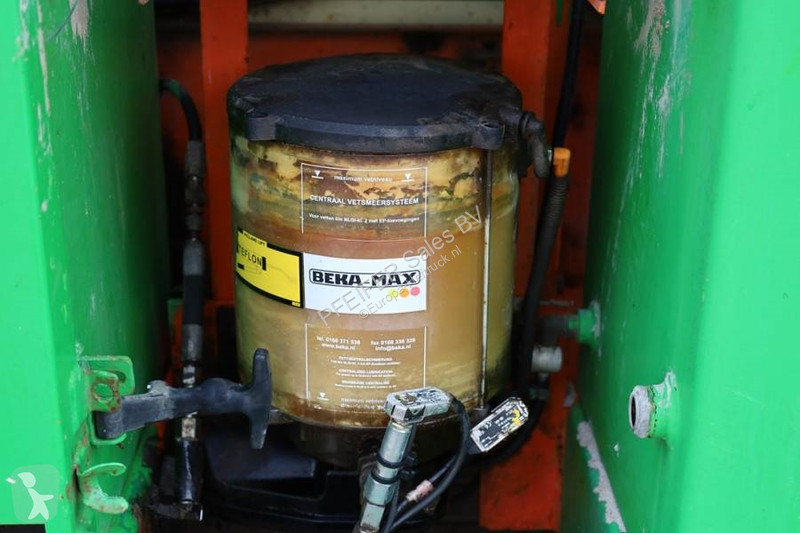

Lubrication system (Auto Lube)
Differential lock for increased traction

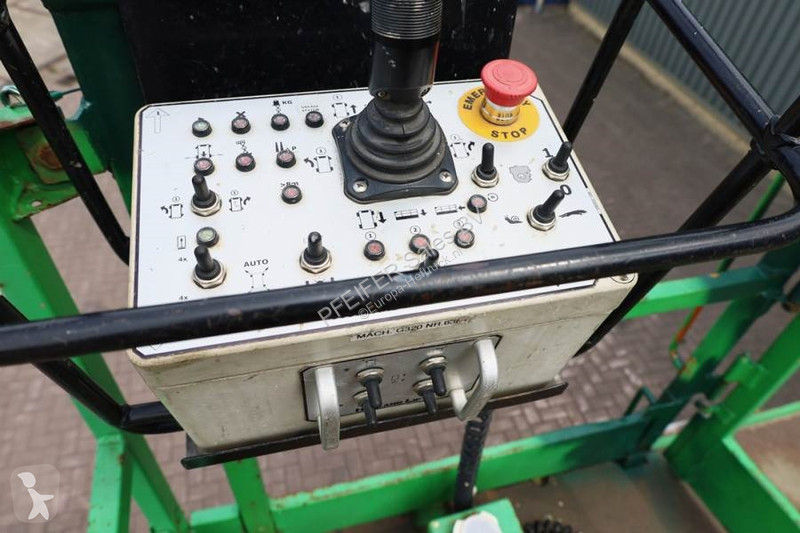

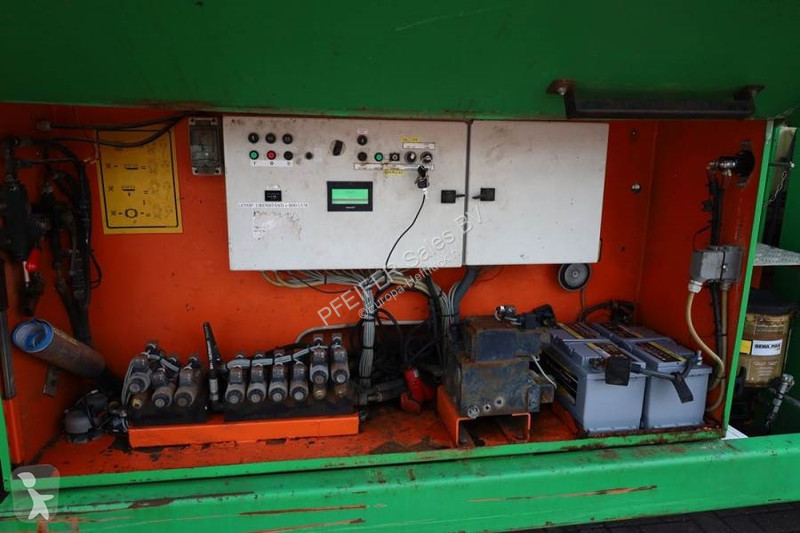

Quick disconnect control box

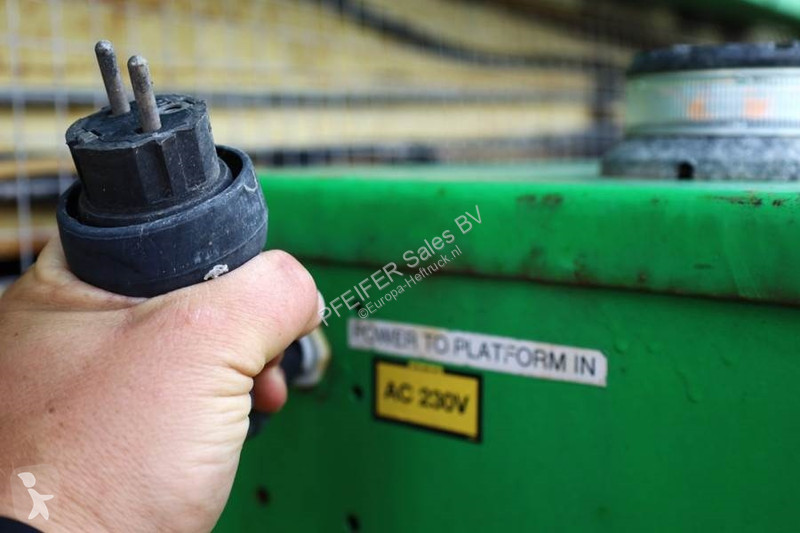

Power supply on the platform

Applications
Suitable for indoor and outdoor use
Ideal for high-reach tasks on uneven terrain due to 4WD & levelling

CE (Declaration of Conformity)
All necessary documents and papers.

More detailed pictures / product movie on our website.

pfeifermachinery.com

Above specifications are subject to change without prior notice and subject to errors

Resterend profiel voorbanden: 70
Resterend profiel achterbanden: 70
Afmetingen (LxBxH) (m): 7.02x2.98x3.63
Neem voor meer informatie contact op met PFEIFER GROUP (عرض الرقم, عرض الرقم, )
